Low Price Waste Copper Hydraulic Metal Baling Scrap Processing Machines
hydraulic metal baler is capable of extruding various metal
leftover, such as steel paring, waste copper, aluminum, copper,
stainless steel and scraped car materials,etc.Compressing those
materials into qualified charging, such as square column, cylinder,
octagon body and other shapes, to reduce transportation & refining
costs, and increase transportation speed.

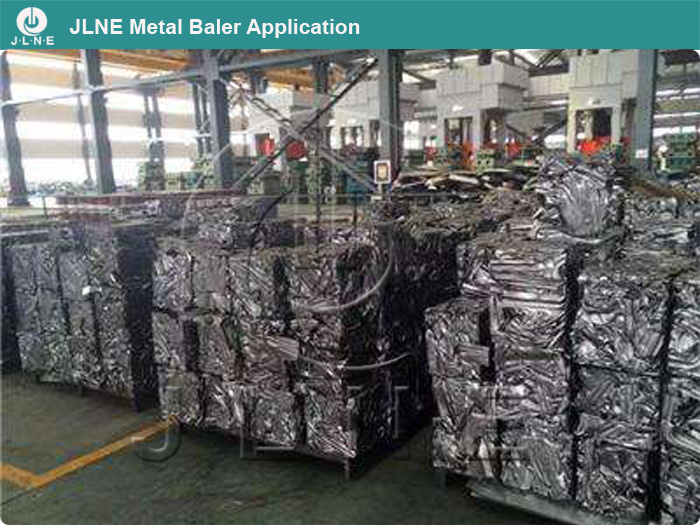

Such baler is mainly used in steel plants, recycling corporation,
turnings, waste recovery and nonferrous & ferrous metal refining
industry.
The discharging ways comprise turning over, push out, forward out
and manual lifting.
The size of the compression chamber and the form and size of the
bale can be designed and customized according to the requirements
of the customers.
Outstanding features of baler press machine
① All baler press machine are use hydraulic-driven, customers can
choose the operation type like manual or automatic control.
② We can make the output bale type according to your requirements, like turn out, push out, forward or manual discharging.
③ No need screw for installation; diesel engine can be used as power when electric power is unavailable.
④ There are many grades of baling force from 630-4000kn for customers choose, production efficiency from 0.4-20t.
⑤ The compression chamber size, the shape and size of the bale can
be done by customers requirements.
The hydraulic system applies an integrated valve block and the
product is stable and reliable
Technical Parameter of metal pressing machine:
| Model | Nominal pressure (kN) | Press box size (mm) | Bale size (mm) | Bale density (t/m3) | Output (T/8h) | Bale weight (kg) | Power (kw) | Weight (T) |
| YDF-63A | 630 | 1000×600×500 | 200×200 | ≥2.0 | 4~6 | 16~30 | 11 | 4.5 |
| YDF-100A | 1000 | 1000×600×500 | 200×200 | ≥2.0 | 8~12 | 16~30 | 11 | 5.5 |
| YDF-100A | 1000 | 1100×500×500 | 200×500 | ≥2.0 | 6~8 | 40~80 | 11 | 5.5 |
| YDF-130A | 1300 | 1200×700×550 | 250×250 | ≥2.0 | 8~12 | 30~45 | 15 | 6 |
| YDF-130B | 1300 | 1200×800×600 | 300×300 | ≥2.0 | 8~12 | 30~45 | 15 | 6.5 |
| YDF-135A | 1350 | 1400×600×600 | 250×600 | ≥2.0 | 10~16 | 70~90 | 18.5 | 6 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 8~12 | 50~80 | 18.5 | 7.5 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 14~18 | 80~140 | 18.5 | 12 |
| YDF-160C | 1600 | 1400×900×700 | 320×320 | ≥2.0 | 16~24 | 80~150 | 22 | 12 |
| YDF-160D | 1600 | 1600×1200×800 | 400×400 | ≥2.0 | 16~30 | 110~170 | 22 | 13.5 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 10~16 | 70~125 | 22 | 12 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 16~20 | 70~125 | 22 | 12 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 18~28 | 110~170 | 22 | 20 |
| YDF-200B | 2000 | 1800×1400×800 | 450×450 | ≥2.0 | 20~30 | 110~170 | 22 | 20 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 20~30 | 110~170 | 30 | 22 |
| YDF-250A | 2500 | 2000×1200×1000 | 450×450 | ≥2.0 | 20~32 | 180~370 | 30 | 20 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 20~36 | 180~370 | 30 | 20 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 20~38 | 180~370 | 22×2 | 27 |
| YDF-250A | 2500 | 1600×1200×1000 | 450×450 | ≥2.0 | 28~38 | 160~330 | 30 | 22 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 28~38 | 180~370 | 30 | 22 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 28~38 | 180~370 | 22×2 | 27 |
| YDF-315A | 3150 | 2000×1400×1200 | 500×500 | ≥2.0 | 35~40 | 220~360 | 45 | 35 |
| YDF-315B | 3150 | 2500×2000×1200 | 600×600 | ≥2.0 | 35~56 | 450~800 | 45 | 39 |
| YDF-400A | 4000 | 2500×1600×1200 | 600×600 | ≥2.0 | 40~70 | 400~750 | 45×2 | 45 |
| YDF-400B | 4000 | 2800×1800×1200 | 650×650 | ≥2.0 | 50~80 | 650~900 | 45×2 | 50 |
|
|
